Engineering steels cover a wide variety of steels that are generally heat treated to produce high strength levels of 750 MPa and above. Typical applications include automotive engine and transmission components, bearings, rails, machine tools and wire ropes. Although engineering steels include carbon-manganese compositions (with a high C content), most contain small to large additions of other alloy elements, such as Cr, Ni, V, Mo, W, etc.
|
Grade
|

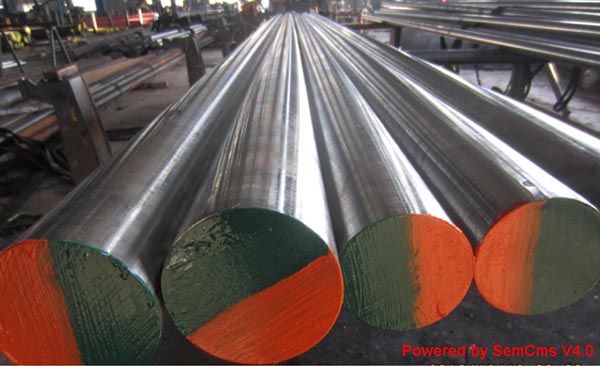

Round bar
|
Flat bar
|
Plate
|
Block
|
Forging parts
|
|
AISI/SAE
|
DIN
|
W.Nr
|
JIS
|
BS
|
|
5140
|
41Cr4
|
1.7035
|
SCr440
|
|
√
|
√
|
|
√
|
√
|
|
5115
|
16MnCr5
|
1.7131
|
SCr415
|
|
√
|
√
|
|
√
|
√
|
|
5120
|
20MnCr5
|
1.7147
|
SCr240
|
|
√
|
√
|
|
√
|
√
|
|
|
15Mo3
|
1.5415
|
|
|
√
|
√
|
|
√
|
√
|
|
|
13CrMo44
|
1.7335
|
|
|
√
|
√
|
|
√
|
√
|
|
|
16CrMo44
|
1.7337
|
SCM415
|
|
√
|
√
|
|
√
|
√
|
|
4130
|
25CrMo4
|
|
SCM430
|
|
√
|
√
|
|
√
|
√
|
|
4135
|
34CrMo4
|
1.7220
|
SCM435
|
|
√
|
√
|
|
√
|
√
|
|
4140
|
42CrMo4
|
1.7225
|
SCM440
|
EN19
|
√
|
√
|
|
√
|
√
|
|
4145
|
50CrMo4
|
1.7228
|
SCM445
|
|
√
|
√
|
|
√
|
√
|
|
815M17
|
18CrNiMo5
|
|
|
|
√
|
√
|
|
√
|
√
|
|
8620
|
20NiCrMo2
|
1.6523
|
SNCM220
|
|
√
|
√
|
|
√
|
√
|
|
9840
|
36CrNiMo4
|
1.6511
|
|
|
√
|
√
|
|
√
|
√
|
|
|
35NiCrMo16
|
1.2766
|
|
|
√
|
√
|
|
√
|
√
|
|
|
40NiCrMo8-4
|
1.6562
|
|
|
√
|
√
|
|
√
|
√
|
|
|
41CrAlMo7
|
1.8509
|
|
|
√
|
√
|
|
√
|
√
|
|
|
34CrAlNi7
|
1.855
|
|
|
√
|
√
|
|
√
|
√
|
|
|
10CrMo910
|
1.738
|
|
|
√
|
√
|
|
√
|
√
|
|
|
12CrMo195
|
1.7362
|
|
|
√
|
√
|
|
√
|
√
|
|
Available size:
Round bar:D10-610mm
Hot Rolled Flat bar: T16-350 X width 100-610mm
Hot Forged Flat bar:T10~90mm X Width 60~550mm
Plate:T10-300mm X Width 1000-2300mm
Block:T 100~800mm X Width 100~1,600mm
Forging parts: Max OD 1500 Max Length 2000mm Max Weigth 75MT/pcs Ring: Max OD 6000mm Disc: Max OD 3500mm Roller: Max OD 3000mm 45# carbon steel, 42CrMo4, 50CrMo4 Alloy steel Forging Blank
Remarks: we can accept some special size that beyond our available size.
|
|
